Reverse-engineering Jane Street's ASIC puzzle: from GDS to "( TWO STARS )"

RETRACE project writeup, 2026-09-19. Repository: elementalcollision/retrace (public).

Answer. The chip is an 11 x 11 Star Battle ("Two Not Touch") checker. Clocked in row by row, one cell per enabled cycle, the only accepted grid raises success and makes the chip print (* TWO STARS *) on O[7:0].

How we know. Every stage of the inverse flow has its own oracle, and nothing downstream was trusted until the stage above it passed. The answer was found twice, independently: once by solving the puzzle from rules read out of proven RTL, and once by blind formal search on the raw extracted netlist. Both routes returned the same 121 bits. A SAT lemma on the netlist shows the solution is unique over every possible input sequence.

This was done after the contest closed (2026-09-04), as a learning exercise for our own ASIC project, TEMPO. See How this was built: it was done end to end with Claude Code agents, which the contest rules would not have allowed.

The puzzle

Jane Street published a GDS (puzzle.gds), a sample waveform whose inputs do not solve it, a hint image, and a fully worked warm-up: the same flow applied to a small adder, with source, netlist, DEF and GDS. The task: recover a netlist from the layout, work out what it does, find the input that raises success, and simulate the "output generator" to read the answer.

What the GDS actually contains (measured, not assumed):

That last row sets the shape of the problem. There are no transistors to recognise: every instance is a named library cell. What was removed is connectivity-by-name, so the work is to rebuild connectivity from geometry and then understand 728 anonymous gates.

Thesis: every stage has an oracle

Reverse engineering fails quietly: one missed via merges two nets, and everything you reason about afterwards is fiction. TEMPO's verification answer to "is the RTL right?" is an independent model, co-simulation, formal checks and a mutation campaign. RETRACE applies the same answer to each stage of the inverse flow:

Because the warm-up ships every forward-flow stage, each inverse stage was built and proven on it before touching the puzzle.

1. Recon: identify the exact PDK from geometry

The extractor trusts cell masters, so the first check compared each master's polygons in the GDS against the PDK's copy (cellcheck.py, layer by layer, on a 1 nm grid). Against the OpenLane 2 default PDK (0fe599b2), 3 of 69 masters differed: o211a_2 and and4b_2 on poly or licon, the layers that form transistors, and conb_1 on layer 95/20. Those differences could have meant tampering. Scanning 25 of the 116 released sky130 builds settled it: open_pdks 8afc8346 matches all 69 puzzle masters and all 18 warm-up masters exactly. The differences were PDK revisions, and that build became the pinned PDK.

2. Extraction: what a pin really is

Extractor 1 (tools/retrace/extract.py, gdstk + shapely) places each instance from the LEF cell size and its GDS transform, builds pin conductors per master, and merges routing, via pads and pins with union-find, joining layers only through via cuts. It runs on the puzzle in 0.7 s. The interesting part is what a pin is, and each answer below came from a check failing:

1. The pin-layer shapes are markers. In these files li1 datatype 16 is a 0.17 um square at each label, not the pin. A pin is the cell-internal conductor under the label. (Found by the DEF net comparison: nets split, and some pins were named wrongly.)
2. A pin can be a met1 strap over separate li1 islands (xor2_2 B, dfrtp_2 RESET_B), and the router lands on the strap. (Same check.)
3. A pin can be two li1 islands joined only by gate poly (a31oi_2 A1: its LEF port lists both rectangles). In the puzzle, the router ran a net through such a pin. With metal-only connectivity, both extractors reported an undriven net there. What exposed it was a disagreement: KLayout reported an unnamed pin where ours saw nothing. Following poly through licon fixed both extractors.
4. Tie cells reach the supplies through poly resistors. Once poly was followed, conb_1's HI output merged into VPWR. Poly is now cut at the PDK's resistor marker (66/15), which only conb_1 uses.

Extractor 2 (tools/l2n/) is KLayout's hierarchical LayoutToNetlist engine with its own connectivity rules and no shared code. The two agree net for net: warm-up 86/86, puzzle 719/719 multi-pin nets.

3. Proving the extraction

On the warm-up (ground truth at every stage):

• V1: all 230 placements equal the DEF.
• V3a: the net partition over (instance, pin) equals the DEF, 84/84 nets.
• V3b: the extracted netlist is a labelled-graph isomorph of the synthesised netlist (79 cells, 84 nets).
• V3c: a miter of the two netlists, from an asserted reset, is proven sequentially equivalent by SymbiYosys abc pdr, without a name mapping: PDR finds the state correspondence itself. A negative control (A0/A1 swapped on one mux2_1) fails. That matters, because a proof that passes instantly is also what a vacuous proof looks like.

On the puzzle (no ground truth):

• V4: the two extractors agree exactly.
• V5: power and ground are separate and reach all 1618 instances; every signal net has exactly one driver; no logic input floats. The only unloaded outputs are 15 clkbuf_4 clock-tree dummy loads and unused tie outputs.
• V6: the extracted netlist replays the sample VCD with 1248 checks and 0 errors in Icarus (PDK Verilog models) and in Verilator (logic built from the Liberty functions). The sample prints TRY AGAIN, twice.

Mutation campaign. Does any of this notice a wrong extraction? 130 mutants over 10 operators, on both designs: deleted vias, near-miss wire shifts, shorts, flipped cells, same-footprint master swaps, swapped pin labels, transistor-level tampering, deleted art, changed path end caps, and inserted vias. Result: 90 killed, 39 equivalent (no electrical change), 1 survived. On the warm-up, the ground-truth checks V3a and V3b alone kill 100% of the non-equivalent mutants. On the puzzle, electrical sanity (67%) and the two simulators (59% and 57%) carry the weight. The survivor is a nor2_2 swapped for a nand2_2. That is not an extraction error: it is a different chip, which only a behavioural oracle can see, and the sample VCD does not exercise that gate. Once the recovered design existed, proving it against the mutant layout killed this mutant as well.

4. Understanding: from 92 flops to six blocks

The fan-in cones gave the first cut: success is the output of a single flop, and each O[i] is purely combinational logic over 16 flops (23 across the byte: the output generator's 12, the star counter's 8 and the decision block's 3). The strongly connected components of the flop-to-flop dependency graph, together with placement, gave six blocks: counter (9 flops), array (44), left_top (16), left_bottom (8), check (3) and outgen (12). The layout really is "arranged to hint": each block is a cluster on the die.

The V7 harness (tools/analysis/cone.py) cuts the netlist at the flops. For each block it exports the exact gate logic as a "gold" module (inputs: ports and current flop values; outputs: next flop values and owned outputs). Recovered RTL for a block is accepted only if a SAT miter proves it equal to the gold module. Six agents recovered one block each. Six independent skeptics, one per block, re-ran each proof and tested each claim, and three blocks got a repair pass. An integration agent assembled puzzle_recovered. The whole design is then proven equal to the extracted netlist by abc pdr (tools/analysis/e2e.py), with no assumption beyond the initial reset. It takes about 2 s because the miter asserts all 92 flop pairs equal, not just the outputs, which makes the property 1-inductive given the block proofs. Changing one byte of a message makes the proof fail.

Three errors were caught in review, and each one is a lesson:

• The harness itself was blind to O. Nets named after bus bits were emitted as wire O[3];, which Verilog reads as a separate array, so the gold O was undriven and anything matched it. The self-test ("gold renamed as recovered passes") had the same defect on both sides. The outgen reviewer found it. The fix now carries a test that a flipped O bit fails.
• Bit order: 11 versus 22. The check block compares eight counter flops against the pattern 0000_1011 in flop-id order. The integration draft read that as "the counter must equal 11". The counter's real bit weights run in a different order, and simulating the proven counter from reset reaches the pattern after exactly 22 increments. 22 is also the only value consistent with the other conditions.
• The same trap in the output generator. "BIG BANG" is selected by the raw byte 0xAE, with yet another bit order. That byte is the count 121: every cell lit.

5. What the chip is

success is set if and only if, at the decision: exactly 22 stars were entered; every region and every column holds exactly 2; the row flag and the touching flag are clear. The messages tell the story: EMPTY SKY for 0 stars, BIG BANG for all 121 cells, TWO NOT TOUCH when everything is right except that stars touch, TRY AGAIN otherwise. On success, O prints a table XORed with the scrambler, so the text is only readable for the right grid.

The region map (letters are the 11 regions, sizes 4 to 28 cells):

6. Solving it twice

• Route A, analytical (tools/solve/starbattle.py): derive every rule from the proven RTL by simulation (cell order, region masks, column bins, the exact behaviour of both flags, including that adjacency is king-move with no wraparound). Encode the rules in z3, including the flag logic unrolled over the 121-cell schedule, and enumerate by blocking each model. Result: exactly one solution.
• Route B, formal (tools/solve/formal_solve.py): no interpretation at all. SymbiYosys on the extracted netlist with cover(success) or assert(!success), in four engines (yices, bitwuzla, abc bmc3, yices BMC). All four reach success at step 123 in 4 to 12 s. A second run adds a sticky "differs from the found sequence" register: no other sequence reaches success within depth 135.

The two agents could not see each other's work, and they returned the same 121 bits.

Uniqueness over every input. Both routes assume enable stays high through the 121 cells. A SAT lemma on every block's gold cone, i.e. on the netlist logic, closes that gap: before the decision, a cycle with enable low changes no flop (the four no-reset flops are forced to 0). A negative control fails. A run with gaps is therefore the same run with the gaps removed, whatever I does during them, and after the decision the outcome is latched.

Confirmation. The answer was run on three models: the netlist in Icarus with the PDK models, the netlist as Liberty logic in Verilator, and the recovered RTL. A separately written testbench replayed it on a freshly extracted netlist with a 5-cycle reset, 17 enable gaps and the wrong bit on I during every gap. Every run shows success high and the 15 bytes 28 2a 20 54 57 4f 20 53 54 41 52 53 20 2a 29: (* TWO STARS *). answer/solution.vcd is the winning run, in the format of the sample.

7. Transfer: an independent LVS for TEMPO

The test of whether this is a method rather than a one-off script is whether it carries over to another process and a much larger design. The extractor now takes a technology table (tools/retrace/tech.py: conductor and cut layers, the rule for joining a pin's islands, physical and macro cells, supply names). SKY130_HD reproduces the puzzle work exactly, and IHP_SG13CMOS5L is new. The puzzle and warm-up netlists extracted by the refactored code are byte-identical to those from the committed pre-port code.

The target is TEMPO's sign-off GDS (IHP sg13cmos5l, 62,151 cell and macro instances, 335,134 references, one SRAM macro), checked against TEMPO's own DEF, final netlist and LEF. This is an LVS independent of LibreLane's Magic and Netgen (tools/tempo/lvs.py, docs/TEMPO_LVS.md):

It runs in about 20 s, and since 2026-09-19 it runs in TEMPO's CI after every sign-off (first run: the CI-built v0.2-signoff GDS, all checks passing). Power connections (124,303 pins) and 157 single-pin nets are counted and excluded explicitly, because DEF's NETS and the netlist do not list them.

u_coretempo_core, 9,466 cells

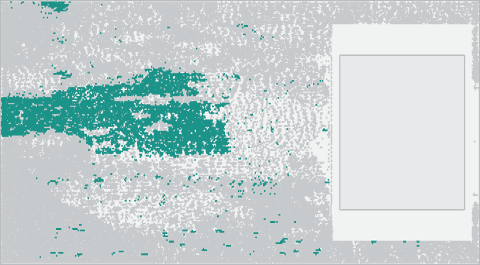

u_tiotempo_tio, 4,894 cells

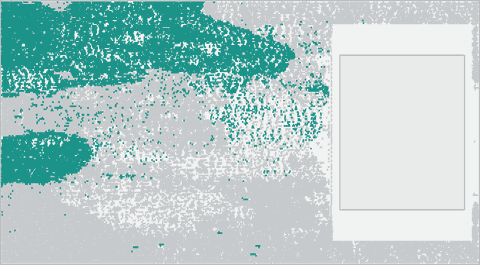

u_sertempo_ser_block, 11,287 cells

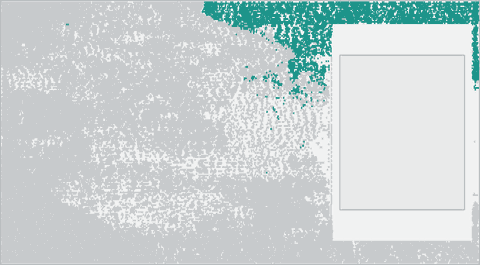

u_crctempo_crc_block, 3,818 cells

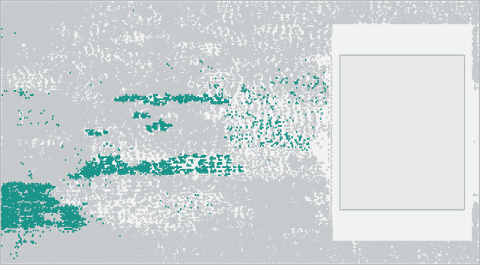

u_systempo_sys, 2,283 cells

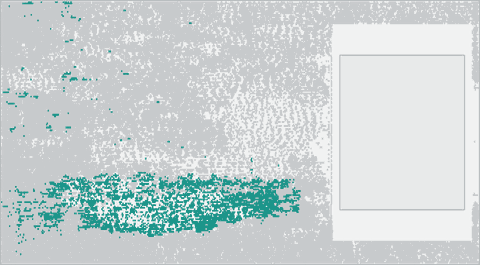

u_hosttempo_host, 2,896 cells

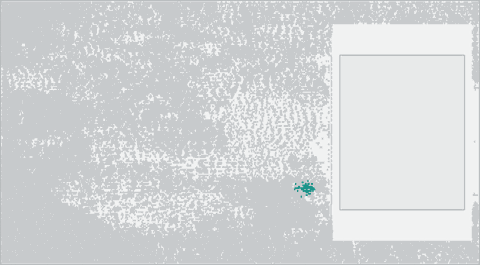

u_arbtempo_arb, 40 cells

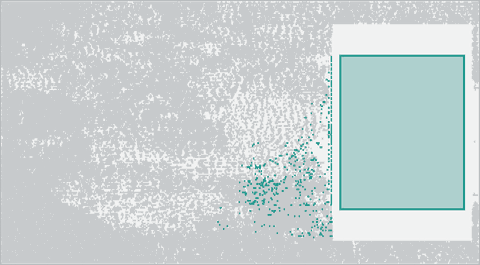

u_memtempo_mem, 464 cells

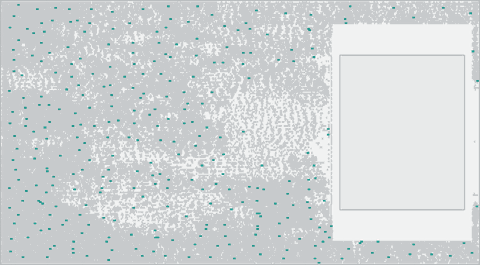

clock treeCTS buffers, 310 cells

What the port taught:

• A 90-degree rotation path had never run. The puzzle never rotates a cell, and TEMPO's SRAM is placed at orientation E. The orientation table and the DEF-offset formula now cover all eight orientations, checked against the macro's DEF placement.
• A process-specific rule is not a general one. IHP's tie cells need no poly-resistor cut. This was verified by running the join algorithm on the PDK's own tiehi and tielo, not assumed from sky130.
• The pins check had a blind spot. It compared pin-name sets, so two swapped labels on the same macro passed it (the net-partition checks still caught the swap). A geometric check now requires every LEF pin rectangle to sit on the extracted conductor of the same name. It passes on TEMPO (553 rectangles), and swapping two labels, on the SRAM or on a nand2, fails it.
• The supply check could not fail. It compared chip-level VDD and VSS labels, which TEMPO's GDS does not have, and the partition checks leave the supply nets out. A Metal1 bar from VDD to VSS inside a filler cell, in a copy of the sign-off GDS, passed every check. The check now works from each pin's LEF USE: every power pin on one net, every ground pin on another, never the same net. A short is located by a breadth-first search over touching shapes from the power pins to the first ground pin; the shape between them is the short.

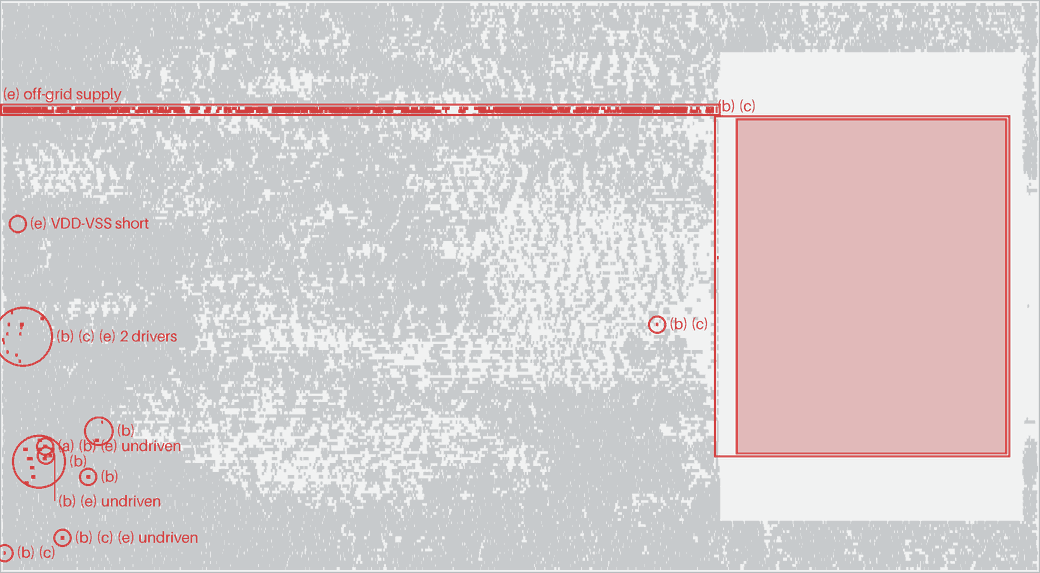

• Planted faults are now tests. Six faults, one per failure class, are planted far apart in one copy of the sign-off GDS (tools/tempo/faults.py), and TEMPO's CI requires every check to report its own fault at the instances it touches and nothing anywhere else. When the LVS fails, CI draws where (tools/viz/lvs_where.py):

8. Round trip: back through Jane Street's flow

The last stretch goal ran the method in reverse: rebuild Jane Street's forward flow, push our recovered RTL through it, and check the new layout with our own tools (docs/ROUNDTRIP.md has the full report, every number sourced).

Which flow. The files carry no tool versions, but they carry fingerprints. open_pdks 8afc8346 is the default PDK of only one line of flows, LibreLane 3.0.x. The warm-up's clock tree uses a non-default routing rule and CTS dummy loads that older OpenROAD versions do not write, and the instance and net names are LibreLane's. The odd cell style (every gate at drive strength _2, no fill, no timing buffers) turned out to be ordinary: the PDK's default list of cells synthesis may not use, plus three non-default settings: module hierarchy kept, and design repair and fill insertion off (the synthesis strategy is the default, AREA 0). The test was the warm-up: with those settings, LibreLane 3.0.14's synthesis reproduces Jane Street's warm-up netlist exactly, down to instance and net names.

Is the puzzle padded? No sign of it. Our proven-equivalent RTL, synthesized the same way, gives 584 cells and 6,982 um^2 before the clock tree, against the puzzle's 696 and 8,034, with the same 92 flops and the same cell style. The puzzle is 19% larger, but a reviewer found that the delay-oriented DELAY 0 strategy gives exactly 696 cells from our RTL, with the wrong gate mix (no XOR gates, where the puzzle has 50). A different RTL partition or recipe could explain the size (no tested recipe matches both the count and the mix); nothing requires a human hand. Only about 7 of the extra cells (tie cells feeding gates, one feed-through buffer) can be pinned directly on kept module boundaries.

The layout. Hardened with LibreLane 3.0.14 and those settings, our design lands on the puzzle's floorplan exactly: all 880 tap and end cells at the same positions, the 13 pins, the 30 power straps and the clock tree's shape (a clkbuf_16 root, 16 leaves, 15 dummy loads). What differs is the gate count, 10 antenna diodes the puzzle has and we do not need, and placement: Jane Street's dense clusters come from a mechanism we did not identify. Without fill, the n-well breaks at every gap: 211 of its pieces have no tap and the narrowest gaps violate spacing, so DRC and LVS fail. puzzle.gds fails the same checks the same way (731 Magic DRC findings, 127 untapped n-well islands). With fill turned on, the same layout is DRC and LVS clean.

Closing the loop. Our GDS passes every oracle RETRACE built for the puzzle: placements, pins, nets against LibreLane's own DEF and netlist, the second extractor, cell geometry against the PDK. Its extracted netlist is proven equivalent to the recovered RTL, and also directly to the puzzle's extracted netlist: two different layouts, one machine, proven in about a second each by the same kind of PDR miter as before, with one-gate mutants failing. Replayed on our layout, the winning input raises success and prints (* TWO STARS *). .github/workflows/roundtrip.yml repeats the hardening and every check on a GitHub-hosted x86-64 runner in about 13 minutes; its first run gave byte-identical synthesis, DEF, netlists and extracted netlist to the arm64 run they were developed on.

9. Naming what is in an anonymous netlist, and a blind test of it

The last stretch goal asks a different question: given a netlist with every name stripped, can a program say this is a counter, this is a shift register, these flops are one word — and can that answer be proved rather than believed? (docs/S3.md is the full report, every figure sourced.)

The design point is who builds the template. A recogniser that says "proven" has proved nothing. So the harness, not the recogniser, constructs each kind's defining template from the kind, bit order and parameters it was given, and checks it on its own copy of the netlist, under four obligations: extent (no counter narrower than two bits, no shift register shallower than three), liveness (every claimed bit must be able to move, so a structure cannot be padded with passengers), coverage (a reset case a higher-priority one shadows is vacuous), and hold (a counter must say when it holds, and an opaque load case may not be the thing that empties that region). A restatement of a flop's own next-state function therefore verifies nothing. On the blind set the recogniser claimed 215 structures "proven"; the harness proved 40.

The evaluation was pre-registered. The candidate pool — 84 third-party Tiny Tapeout designs on sky130, chosen by criteria that look at no design's structure beyond its size and cell library — was registered before the recogniser existed. Code, protocol, truths and a 128-bit draw seed were frozen in one commit; ten designs were then drawn with that seed, labelled by the frozen labeller, and each run once. No design was replaced by a reserve, and the harness refuses to start if anything under tools/s3/ has changed.

What it found. 59 of 94 structure-kind registers found (0.628), the structure behind 41 of them certified (0.436). Only counter has enough support to be called a rate: 41 of 59 found, 23 certified — below the estimate published before the freeze (0.636, Fisher p = 0.017). Synchronizers 17 of 18, shift registers 1 of 8, and LFSR/CRC 0 of 9, all nine of which sit in one design. Two things held up: bit order, perfect on every counter it found (2,797 pairs, against a chance of 0.5), and word grouping, whose AMI of 0.8425 sits level with its reference in absolute terms and further above its own chance floor than the reference sits above its.

What it cost is the more useful half. Every found-but-uncertified register in the whole blind set is one obligation — the hold rule refusing a structure whose hold region empties only once an opaque load is conjoined in — which is the rule working, and a ceiling on what this slice can certify. Two certified counter moduli were nonetheless wrong, which the report names rather than averages away. And a quarter of the ground truth is not established: on 23 of the 94 registers the frozen labeller's own equivalence proof contradicts its own labels, 16 of them in the single design that supplies every LFSR register — so the kind that scored zero was measured against labels that are not sound. The reference is not clean either: one design in the pre-published holdout was written from puzzle knowledge. Reporting a result whose denominator you distrust is less comfortable than reporting the number alone, and it is the only version worth publishing.

Then it was run again. A result from ten designs is a small sample, so a second freeze drew ten more from the pool, excluding every design the first evaluation had already seen, and re-ran the same recognizer, byte for byte. What would count as "the same result" was written down and committed before the new seed existed. Counter recall on proved structures came out at 19 of 49 (0.388) against the first run's 23 of 59 (0.390): by the pre-registered rule, consistent, and 42 of 108 (0.389) over all twenty designs. Every figure was computed once from the raw records and recomputed independently with separate code; the two agreed on 213 of 216, and the other three differed only in the order of their random draws (docs/S3_REPLICATION.md). The replication also found a defect in the frozen labeller itself — it cannot label a shift register that synthesis has partly removed — which cost two drawn designs, and which the report records rather than hides.

Easter eggs

• A row of rectangles below the die, in two widths with a 1:3 ratio: Morse code for PER ARENAM AD ASTRA, "through sand to the stars" (silicon, then the Star Battle).
• 1366 met2 squares, 0.3 um each, draw a 57 x 57 logo of four broken concentric rings, in both the puzzle and the warm-up. They extract as three floating islands that touch no signal.
• The sample VCD is dated Sat Dec 31 23:59:60 2016, the 2016 leap second, and its version string reads "Leave no stone unturned!".
• EMPTY SKY, BIG BANG and TWO NOT TOUCH are reachable in their own right. Simulated on the extracted netlist: 0 stars prints EMPTY SKY, all 121 cells print BIG BANG, and a grid that obeys every rule except that stars touch prints TWO NOT TOUCH (test/test_messages.py).

What this project developed, and where it applies

Most of what follows is a new combination of established techniques (union-find extraction, LVS-style partition comparison, PDR equivalence, mutation testing) rather than a new algorithm. We have not done a prior-art search, so nothing here should be read as a novelty or patentability claim. Note also that the repository is public under Apache-2.0, which carries an express patent licence to users. Each item names the code path that implements it.

| 17 | Kind-bound verification of a recovered structure: the harness, not the recogniser, builds each kind's defining template from the declared kind, order and parameters and proves it on its own graph, under extent, liveness, coverage and hold obligations a padded or carved-out structure cannot pass | tools/s3/verify.py, tools/s3/schema.py | separates "the recogniser says proven" (215) from "the harness proved it" (40) on the same run, and the gap is reported per structure with its reason | qualifying any netlist-structure recogniser; accepting machine-proposed structure in reverse engineering, IP audits or legacy-netlist modernisation | | 18 | Pre-registered blind evaluation for a reverse-engineering tool: register the candidate pool by structure-blind criteria before the code exists, freeze code, protocol, truths and a random seed in one commit, draw the test set with that seed afterwards, and publish the misses with their causes | tools/s3/freeze.py, tools/s3/thirdparty.py, docs/S3.md | a self-deception budget spent up front: a hash-chained attempt ledger, a contamination record naming every path by which knowledge reached development, and a refusal to start if any frozen file changed | honest benchmarking of EDA and security tools, where the author writes the tool, the test set and the scoring |

Lessons that transfer

1. Make every proof prove it can fail. Four of our "passes" would have been vacuous without a planted negative: the warm-up PDR proof, the per-block V7 harness (which really was blind to O), the uniqueness lemma, and TEMPO's supply check, which read labels that TEMPO's GDS does not have.
2. Disagreement is the most valuable signal. The poly-joined pin bug fooled both extractors in the same way. Only a difference in how each reported that pin exposed it. Two independent implementations of the same step are worth their cost.
3. Bit order is where interpretation goes wrong. The gates were proven correct. The error was in reading a correct pattern as a number.
4. Separate "the extraction is right" from "this is the chip". Extraction checks are blind to a legitimate different chip. The recovered, proven RTL is what turns into a regression oracle for that.
5. Agents with skeptics. Agents drafted, independent agents tried to refute, and the lead re-ran every decisive check. Every error listed in this writeup was caught by an oracle, a reviewer or a negative control, not by the one who made it. This writeup was itself fact-checked claim by claim by three more agents, which found 13 problems, all fixed, including a reproduction command that did not work from a clean checkout.
6. A rule that looks like "how this process works" may really be "how this specific process works." The sky130 poly-resistor cut and the untested 90-degree-rotation code path (§7) were both invisible until a second process and a second, larger design exercised them.
7. A matching count is not a match. One synthesis strategy gives exactly the puzzle's 696 cells from our RTL, and the wrong gate mix. Calibrating on the warm-up, where the answer is known down to net names, is what made the strategy question answerable at all.
8. Decide how you will be wrong before you can see the answer. The blind evaluation's value came almost entirely from choices made before the test set existed: pool criteria that look at no design's structure, a seed drawn and committed in advance, a rule that a design may be replaced only if labelling fails and never because it looks hard, and a written contamination record. Every one of them removed a decision we would otherwise have made after seeing a number we did not like.
9. Check the reference, not just the result. The blind grouping score looked like a tie with its published reference until someone asked what chance looked like on each side: a random partition already scores 0.70 on the synthetic reference and 0.00 on real third-party designs. The same reference turned out to contain a design written from puzzle knowledge. A benchmark number is a claim about two populations, and only one of them is usually examined.

How this was built

RETRACE was run by Claude Code (Claude Opus 5 as lead, Sonnet 5 subagents for parallel work), directed by the project owner, on 2026-09-18 and 19, after the contest deadline. The contest rules, as stated in the announcement post, prohibited feeding the puzzle files to AI tools and using AI for writeups, so this is not a contest entry. The approach kept one line on purpose: AI wrote and ran tools, and the tools did the analysis, so every result here can be reproduced from the repository without an AI in the loop. Four multi-agent phases used 27 subagent runs (about 4.5 M subagent tokens): intent recovery and the mutation campaign (18 runs, 83 minutes of wall time), solving (3, 31 minutes), fact-checking this writeup (3, 10 minutes) and the IHP port (3, 61 minutes).

Stack: gdstk, shapely, KLayout (Python), Yosys, SymbiYosys (abc pdr, abc bmc3, smtbmc with yices and bitwuzla), Icarus Verilog, Verilator, z3, networkx; sky130 via ciel (open_pdks 8afc8346).

Reproduce

.venv/bin/python -m pytest -q                       # V1-V8, uniqueness, mutation smoke tests
.venv/bin/python -m tools.retrace.extract upstream/puzzle.gds --verilog out/puzzle.v
.venv/bin/python -m tools.analysis.e2e              # recovered RTL == extracted netlist
.venv/bin/python -m tools.solve.formal_solve        # route B
.venv/bin/python -m tools.solve.starbattle          # route A
.venv/bin/python -m tools.analysis.eastereggs       # Morse strip and pixel art
.venv/bin/python -m tools.tempo.lvs                 # G6: IHP port, LVS against TEMPO's sign-off GDS
.venv/bin/python -m pytest -q test/test_tempo.py    # skips cleanly without the TEMPO checkout

All tests pass (358 passed, 9 skipped). For a while after the blind evaluation one did not: test_permutation_counts_and_record_locations required every record in out/s3/runs to be marked blind, but the protocol writes an attempt record there that carries no such mark, so the test had passed only while no blind run had ever been made. The test and the code it checks were both inside the freeze, so the fix went into a superseding one, Freeze 2, where an attempt record is admitted only when the hash-chained ledger vouches for it (docs/S3.md §14 and §17).

Details: docs/STATUS.md (ledger), docs/INTENT.md (design), docs/MUTATION.md, docs/SOLUTION.md, docs/SOLVE_ANALYTICAL.md, docs/SOLVE_FORMAL.md, docs/TEMPO_LVS.md (the G6 port and LVS), docs/S3.md and docs/S3_DESIGN.md (structure recognition).
